Introduction

Capacitors are fundamental components in electronic circuits, playing a crucial role in storing energy. The energy stored in a capacitor is a critical parameter in various applications, including power supplies, filters, and energy storage systems. In this article, we will delve into the concept of energy storage in capacitors, exploring the factors that influence the amount of energy stored and providing a step-by-step guide to calculating the energy stored in a capacitor.

The Basics of Capacitors

A capacitor consists of two conductive plates separated by a dielectric material, which can be a vacuum, air, or a solid material with high dielectric constant. When a voltage is applied across the capacitor, an electric field is established between the plates, causing the plates to become charged. The amount of charge stored on the plates depends on the capacitance of the capacitor, which is a measure of its ability to store electric charge.

Capacitance and Energy Storage

The capacitance of a capacitor is defined as the ratio of the charge stored on the plates to the voltage applied across the capacitor. Mathematically, it can be expressed as:

C = Q / V

where C is the capacitance, Q is the charge stored, and V is the voltage applied.

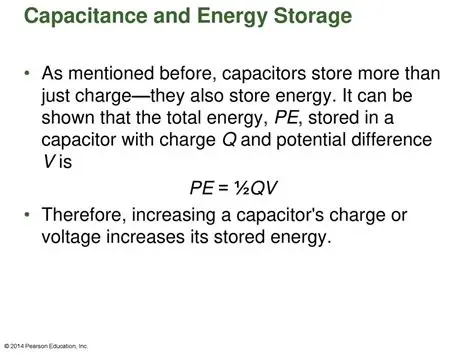

The energy stored in a capacitor is given by the formula:

E = (1/2)CV^2

where E is the energy stored, C is the capacitance, and V is the voltage applied.

Calculating Energy Storage in a Capacitor

To calculate the energy stored in a capacitor, we need to know the capacitance and the voltage applied. In this example, we are given a capacitor with a capacitance of $$2.20 \times 10^{-6} F$$ and a power supply with a voltage of $$14.0 V$$.

Using the formula for energy storage, we can plug in the values:

E = (1/2)CV^2 = (1/2)(2.20 \times 10^{-6} F)(14.0 V)^2 = (1/2)(2.20 \times 10^{-6} F)(196.0 V^2) = 2.16 \times 10^{-3} J

Discussion and Conclusion

In this article, we have explored the concept of energy storage in capacitors, discussing the factors that influence the amount of energy stored and providing a step-by-step guide to calculating the energy stored in a capacitor. We have also applied the formula for energy storage to a specific example, calculating the energy stored in a capacitor with a capacitance of $$2.20 \times 10^{-6} F$$ and a power supply with a voltage of $$14.0 V$$.

The energy stored in a capacitor is a critical parameter in various applications, including power supplies, filters, and energy storage systems. Understanding the factors that influence energy storage and being able to calculate the energy stored in a capacitor are essential skills for engineers and scientists working in these fields.

Key Takeaways

The energy stored in a capacitor is given by the formula E = (1/2)CV^2.
The capacitance of a capacitor is defined as the ratio of the charge stored on the plates to the voltage applied across the capacitor.
The amount of energy stored in a capacitor depends on the capacitance and the voltage applied.
Calculating the energy stored in a capacitor requires knowledge of the capacitance and the voltage applied.

References

[1] Halliday, D., Resnick, R., & Walker, J. (2013). Fundamentals of Physics (10th ed.). John Wiley & Sons.
[2] Serway, R. A., & Jewett, J. W. (2018). Physics for Scientists and Engineers (10th ed.). Cengage Learning.
[3] Tipler, P. A. (2015). Physics for Scientists and Engineers (6th ed.). W.H. Freeman and Company.

Introduction

In our previous article, we explored the concept of energy storage in capacitors, discussing the factors that influence the amount of energy stored and providing a step-by-step guide to calculating the energy stored in a capacitor. In this article, we will address some of the most frequently asked questions about energy storage in capacitors, providing a comprehensive Q&A guide for engineers and scientists working in this field.

Q&A Guide

Q: What is the formula for energy storage in a capacitor?

A: The formula for energy storage in a capacitor is E = (1/2)CV^2, where E is the energy stored, C is the capacitance, and V is the voltage applied.

Q: What is capacitance, and how is it related to energy storage?

A: Capacitance is the ability of a capacitor to store electric charge. It is defined as the ratio of the charge stored on the plates to the voltage applied across the capacitor. The amount of energy stored in a capacitor depends on the capacitance and the voltage applied.

Q: How do I calculate the energy stored in a capacitor?

A: To calculate the energy stored in a capacitor, you need to know the capacitance and the voltage applied. You can use the formula E = (1/2)CV^2 to calculate the energy stored.

Q: What are some common applications of capacitors in energy storage?

A: Capacitors are used in a wide range of applications, including power supplies, filters, and energy storage systems. They are also used in electronic circuits to store energy and release it as needed.

Q: Can I use a capacitor to store energy for a long period of time?

A: While capacitors can store energy for a short period of time, they are not suitable for long-term energy storage. Capacitors can lose their charge over time due to leakage and other factors.

Q: How do I choose the right capacitor for my energy storage application?

A: When choosing a capacitor for energy storage, you need to consider the capacitance, voltage rating, and other factors such as leakage and temperature stability.

Q: What are some common types of capacitors used in energy storage applications?

A: Some common types of capacitors used in energy storage applications include electrolytic capacitors, ceramic capacitors, and film capacitors.

Q: Can I use a capacitor to store energy in a DC circuit?

A: Yes, capacitors can be used to store energy in a DC circuit. However, you need to consider the polarity of the capacitor and ensure that it is connected correctly.

Q: How do I calculate the energy stored in a capacitor with a non-linear capacitance?

A: If the capacitance is non-linear, you need to use a more complex formula to calculate the energy stored. You can use the formula E = ∫(1/2)C(V)dV, where C(V) is the capacitance as a function of voltage.

Conclusion

In this article, we have addressed some of the most frequently asked questions about energy storage in capacitors, providing a comprehensive Q&A guide for engineers and scientists working in this field. We hope that this guide has been helpful in answering your questions and providing a better understanding of energy storage in capacitors.

Key Takeaways

The formula for energy storage in a capacitor is E = (1/2)CV^2.
Capacitance is the ability of a capacitor to store electric charge.
The amount of energy stored in a capacitor depends on the capacitance and the voltage applied.
Capacitors are used in a wide range of applications, including power supplies, filters, and energy storage systems.
When choosing a capacitor for energy storage, you need to consider the capacitance, voltage rating, and other factors such as leakage and temperature stability.
