Introduction

In the world of electronics, understanding the concept of resistance is crucial for designing and building various electrical circuits. Resistance is a measure of the opposition to the flow of electric current, and it is measured in ohms (Ω). When dealing with multiple resistors connected in series or parallel, calculating the total resistance becomes a complex task. In this article, we will delve into the world of resistors and explore the methods for calculating the total resistance of different combinations of resistors.

Series Resistance

When resistors are connected in series, the total resistance is the sum of the individual resistances. This is because the current flows through each resistor in sequence, and the voltage drop across each resistor adds up to the total voltage drop across the circuit.

Formula for Series Resistance

The formula for calculating the total resistance of resistors connected in series is:

R_total = R1 + R2 + R3 + ... + Rn

where R_total is the total resistance, and R1, R2, R3, ..., Rn are the individual resistances.

Example 1: Series Resistance

Let's consider three resistors connected in series: R1 = 6 Ω, R2 = 20 Ω, and R3 = 10 Ω. To calculate the total resistance, we simply add the individual resistances:

R_total = 6 Ω + 20 Ω + 10 Ω = 36 Ω

Parallel Resistance

When resistors are connected in parallel, the total resistance is less than the individual resistances. This is because the current divides among the resistors, and the voltage drop across each resistor is the same.

Formula for Parallel Resistance

The formula for calculating the total resistance of resistors connected in parallel is:

1/R_total = 1/R1 + 1/R2 + 1/R3 + ... + 1/Rn

where R_total is the total resistance, and R1, R2, R3, ..., Rn are the individual resistances.

Example 2: Parallel Resistance

Let's consider three resistors connected in parallel: R1 = 6 Ω, R2 = 20 Ω, and R3 = 10 Ω. To calculate the total resistance, we use the formula:

1/R_total = 1/6 Ω + 1/20 Ω + 1/10 Ω

To simplify the calculation, we can find a common denominator, which is 60 Ω:

1/R_total = (10 + 3 + 6)/60 Ω 1/R_total = 19/60 Ω

Now, we can take the reciprocal to find the total resistance:

R_total = 60 Ω / 19 R_total ≈ 3.16 Ω

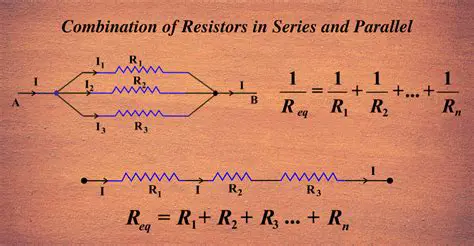

Combination of Series and Parallel Resistance

In many real-world circuits, resistors are connected in a combination of series and parallel. To calculate the total resistance, we need to follow the order of operations (PEMDAS):

Calculate the total resistance of the resistors connected in series.
Calculate the total resistance of the resistors connected in parallel.
Combine the results to find the final total resistance.

Example 3: Combination of Series and Parallel Resistance

Let's consider a circuit with two resistors connected in series: R1 = 6 Ω and R2 = 20 Ω. The total resistance of the series circuit is:

R_total_series = 6 Ω + 20 Ω = 26 Ω

Now, let's consider a second circuit with two resistors connected in parallel: R3 = 10 Ω and R4 = 15 Ω. The total resistance of the parallel circuit is:

1/R_total_parallel = 1/10 Ω + 1/15 Ω 1/R_total_parallel = (3 + 2)/30 Ω 1/R_total_parallel = 5/30 Ω R_total_parallel = 30 Ω / 5 R_total_parallel = 6 Ω

Finally, we can combine the results to find the final total resistance:

R_total = R_total_series + R_total_parallel R_total = 26 Ω + 6 Ω R_total = 32 Ω

Conclusion

Calculating the total resistance of resistors connected in series, parallel, or a combination of both is a crucial task in electronics. By understanding the formulas and examples presented in this article, you will be able to tackle complex circuits with confidence. Remember to follow the order of operations and use the correct formulas to ensure accurate results.

Additional Resources

For further learning, we recommend exploring the following resources:

Q&A: Frequently Asked Questions

Q: What is the difference between series and parallel resistance? A: Series resistance refers to the total resistance of resistors connected one after the other, where the current flows through each resistor in sequence. Parallel resistance, on the other hand, refers to the total resistance of resistors connected between the same two points, where the current divides among the resistors.

Q: How do I calculate the total resistance of resistors connected in series? A: To calculate the total resistance of resistors connected in series, simply add the individual resistances together. The formula is: R_total = R1 + R2 + R3 + ... + Rn.

Q: How do I calculate the total resistance of resistors connected in parallel? A: To calculate the total resistance of resistors connected in parallel, use the formula: 1/R_total = 1/R1 + 1/R2 + 1/R3 + ... + 1/Rn. Then, take the reciprocal to find the total resistance.

Q: What is the formula for calculating the total resistance of a combination of series and parallel resistors? A: To calculate the total resistance of a combination of series and parallel resistors, follow the order of operations (PEMDAS):

Calculate the total resistance of the resistors connected in series.
Calculate the total resistance of the resistors connected in parallel.
Combine the results to find the final total resistance.

Q: How do I use the resistor color code chart to determine the resistance value of a resistor? A: The resistor color code chart is a tool used to determine the resistance value of a resistor based on its color code. The chart is divided into four bands, each representing a digit of the resistance value. The first two bands represent the first two digits, the third band represents the multiplier, and the fourth band represents the tolerance.

Q: What is the significance of the tolerance value on a resistor? A: The tolerance value on a resistor represents the maximum percentage of error in the resistance value. For example, a resistor with a tolerance of ±5% means that the actual resistance value can be up to 5% higher or lower than the nominal value.

Q: How do I choose the correct resistor value for a circuit? A: To choose the correct resistor value for a circuit, consider the following factors:

The desired voltage drop across the resistor
The current flowing through the resistor
The power dissipated by the resistor
The tolerance of the resistor

Q: What is the difference between a fixed resistor and a variable resistor? A: A fixed resistor has a fixed resistance value, while a variable resistor has a resistance value that can be adjusted. Variable resistors are often used in applications where the resistance value needs to be adjusted, such as in volume controls or potentiometers.

Q: How do I calculate the power dissipated by a resistor? A: To calculate the power dissipated by a resistor, use the formula: P = V^2 / R, where P is the power, V is the voltage, and R is the resistance.

Q: What is the significance of the wattage rating of a resistor? A: The wattage rating of a resistor represents the maximum amount of power that the resistor can handle without overheating. It is essential to choose a resistor with a wattage rating that is sufficient for the application.

Conclusion

Calculating total resistance is a crucial task in electronics, and understanding the formulas and concepts presented in this article will help you tackle complex circuits with confidence. Remember to follow the order of operations and use the correct formulas to ensure accurate results. If you have any further questions or need additional resources, please don't hesitate to ask.
