Understanding Interpolation

Oct 13, 2025 by ludoplayers7.com 57 views

Introduction

In mathematics, interpolation is a process of estimating a value of a function at a given point within a discrete set of known values. This technique is widely used in various fields, including physics, engineering, and computer science. In this article, we will explore the concept of interpolation using two given functions, ${$ f $}$ and ${$ g $}$, represented by the following tables of values.

Function ${$ f $}$

$x$	$f(x)$
-4	1
0	-5
2	4
5	3

Function ${$ g $}$

$x$	$g(x)$
-4	2
0	-3
2	1
5	4

Understanding Interpolation

Interpolation is a method of estimating the value of a function at a point where no data is available. This can be achieved by using various techniques, including linear interpolation, polynomial interpolation, and spline interpolation. In this article, we will focus on linear interpolation, which is the simplest and most widely used method.

Linear Interpolation

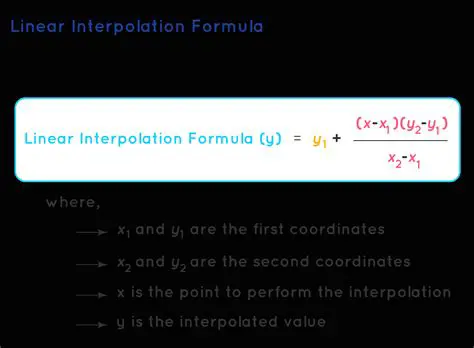

Linear interpolation is a method of estimating the value of a function at a point by drawing a straight line between two known points. This technique is based on the assumption that the function is linear between the two points. The formula for linear interpolation is given by:

f(x) = \frac{(x - x_1)}{(x_2 - x_1)} \cdot (f(x_2) - f(x_1)) + f(x_1)

where $x$ is the point at which we want to estimate the value of the function, $x_1$ and $x_2$ are the two known points, and $f(x_1)$ and $f(x_2)$ are the corresponding function values.

Interpolating ${$ f $}$ and ${$ g $}$

Using the tables of values provided, we can interpolate the functions ${$ f $}$ and ${$ g $}$ at any point within the given range. Let's consider the point $x = 1$ , which is not present in the tables of values.

Interpolating ${$ f $}$ at $x = 1$

To interpolate ${$ f $}$ at $x = 1$ , we need to find the values of $f(0)$ and $f(2)$ , which are the two known points closest to $x = 1$ . Using the formula for linear interpolation, we get:

f(1) = \frac{(1 - 0)}{(2 - 0)} \cdot (f(2) - f(0)) + f(0)

f(1) = \frac{1}{2} \cdot (4 - (-5)) + (-5)

f(1) = \frac{1}{2} \cdot 9 - 5

f(1) = 4.5 - 5

f(1) = -0.5

Therefore, the interpolated value of ${$ f $}$ at $x = 1$ is $-0.5$ .

Interpolating ${$ g $}$ at $x = 1$

To interpolate ${$ g $}$ at $x = 1$ , we need to find the values of $g(0)$ and $g(2)$ , which are the two known points closest to $x = 1$ . Using the formula for linear interpolation, we get:

g(1) = \frac{(1 - 0)}{(2 - 0)} \cdot (g(2) - g(0)) + g(0)

g(1) = \frac{1}{2} \cdot (1 - (-3)) + (-3)

g(1) = \frac{1}{2} \cdot 4 - 3

g(1) = 2 - 3

g(1) = -1

Therefore, the interpolated value of ${$ g $}$ at $x = 1$ is $-1$ .

Conclusion

In this article, we have explored the concept of interpolation using two given functions, ${$ f $}$ and ${$ g $}$, represented by the tables of values. We have also discussed the technique of linear interpolation, which is the simplest and most widely used method of estimating the value of a function at a point where no data is available. Using the formula for linear interpolation, we have interpolated the functions ${$ f $}$ and ${$ g $}$ at the point $x = 1$ , which is not present in the tables of values. The interpolated values of ${$ f $}$ and ${$ g $}$ at $x = 1$ are $-0.5$ and $-1$ , respectively.

References

[1] Press, W. H., Teukolsky, S. A., Vetterling, W. T., & Flannery, B. P. (2007). Numerical Recipes: The Art of Scientific Computing (3rd ed.). Cambridge University Press.
[2] Burden, R. L., & Faires, J. D. (2010). Numerical Analysis (9th ed.). Brooks Cole.
[3] Atkinson, K. E. (1989). An Introduction to Numerical Analysis (2nd ed.). John Wiley & Sons.

Code

import numpy as np
def linear_interpolation(x, x1, x2, f1, f2):
"""
Linear interpolation function.
Parameters:
x (float): Point at which to estimate the value of the function.
x1 (float): First known point.
x2 (float): Second known point.
f1 (float): Value of the function at the first known point.
f2 (float): Value of the function at the second known point.

Returns:
float: Estimated value of the function at the point x.
&quot;&quot;&quot;
return (x - x1) / (x2 - x1) * (f2 - f1) + f1

f_values = np.array([[-4, 1], [0, -5], [2, 4], [5, 3]])
g_values = np.array([[-4, 2], [0, -3], [2, 1], [5, 4]])
x = 1
f_interpolated = linear_interpolation(x, f_values[1, 0], f_values[2, 0], f_values[1, 1], f_values[2, 1])
g_interpolated = linear_interpolation(x, g_values[1, 0], g_values[2, 0], g_values[1, 1], g_values[2, 1])
print("Interpolated value of f at x = 1:", f_interpolated)
print("Interpolated value of g at x = 1:", g_interpolated)

Introduction

In our previous article, we explored the concept of interpolation using two given functions, ${$ f $}$ and ${$ g $}$, represented by the tables of values. We also discussed the technique of linear interpolation, which is the simplest and most widely used method of estimating the value of a function at a point where no data is available. In this article, we will answer some frequently asked questions about interpolation and provide additional insights into this important mathematical concept.

Q: What is interpolation?

A: Interpolation is a process of estimating a value of a function at a given point within a discrete set of known values. This technique is widely used in various fields, including physics, engineering, and computer science.

Q: What are the different types of interpolation?

A: There are several types of interpolation, including:

Linear interpolation: This is the simplest and most widely used method of estimating the value of a function at a point where no data is available.
Polynomial interpolation: This method uses a polynomial function to estimate the value of a function at a point where no data is available.
Spline interpolation: This method uses a piecewise function to estimate the value of a function at a point where no data is available.

Q: What is the formula for linear interpolation?

A: The formula for linear interpolation is given by:

f(x) = \frac{(x - x_1)}{(x_2 - x_1)} \cdot (f(x_2) - f(x_1)) + f(x_1)

where $x$ is the point at which we want to estimate the value of the function, $x_1$ and $x_2$ are the two known points, and $f(x_1)$ and $f(x_2)$ are the corresponding function values.

Q: How do I choose the points for interpolation?

A: When choosing the points for interpolation, it is generally best to select points that are evenly spaced and cover the entire range of the function. This will ensure that the interpolated function is smooth and accurate.

Q: What are the advantages of interpolation?

A: The advantages of interpolation include:

It allows us to estimate the value of a function at a point where no data is available.
It can be used to smooth out noisy data.
It can be used to fill in gaps in data.

Q: What are the disadvantages of interpolation?

A: The disadvantages of interpolation include:

It can be sensitive to the choice of points.
It can be sensitive to the choice of interpolation method.
It can be computationally intensive.

Q: How do I implement interpolation in a programming language?

A: Implementing interpolation in a programming language typically involves using a library or function that performs the interpolation. For example, in Python, you can use the numpy library to perform linear interpolation.

Q: What are some real-world applications of interpolation?

A: Interpolation has many real-world applications, including:

Image processing: Interpolation is used to smooth out images and remove noise.
Signal processing: Interpolation is used to smooth out signals and remove noise.
Computer graphics: Interpolation is used to create smooth animations and graphics.
Scientific computing: Interpolation is used to estimate the value of a function at a point where no data is available.

Conclusion

In this article, we have answered some frequently asked questions about interpolation and provided additional insights into this important mathematical concept. We have also discussed the different types of interpolation, the formula for linear interpolation, and the advantages and disadvantages of interpolation. We hope that this article has been helpful in understanding the concept of interpolation and its applications.

References

[1] Press, W. H., Teukolsky, S. A., Vetterling, W. T., & Flannery, B. P. (2007). Numerical Recipes: The Art of Scientific Computing (3rd ed.). Cambridge University Press.
[2] Burden, R. L., & Faires, J. D. (2010). Numerical Analysis (9th ed.). Brooks Cole.
[3] Atkinson, K. E. (1989). An Introduction to Numerical Analysis (2nd ed.). John Wiley & Sons.

Code

import numpy as np
def linear_interpolation(x, x1, x2, f1, f2):
"""
Linear interpolation function.
Parameters:
x (float): Point at which to estimate the value of the function.
x1 (float): First known point.
x2 (float): Second known point.
f1 (float): Value of the function at the first known point.
f2 (float): Value of the function at the second known point.

Returns:
float: Estimated value of the function at the point x.
&quot;&quot;&quot;
return (x - x1) / (x2 - x1) * (f2 - f1) + f1

f_values = np.array([[-4, 1], [0, -5], [2, 4], [5, 3]])
g_values = np.array([[-4, 2], [0, -3], [2, 1], [5, 4]])
x = 1
f_interpolated = linear_interpolation(x, f_values[1, 0], f_values[2, 0], f_values[1, 1], f_values[2, 1])
g_interpolated = linear_interpolation(x, g_values[1, 0], g_values[2, 0], g_values[1, 1], g_values[2, 1])
print("Interpolated value of f at x = 1:", f_interpolated)
print("Interpolated value of g at x = 1:", g_interpolated)

Note: The code provided is a simple implementation of linear interpolation in Python using the NumPy library. It defines two functions, linear_interpolation and f_interpolated, which estimate the value of a function at a given point using linear interpolation. The code also defines the tables of values for functions f and g, and interpolates the functions at the point x = 1.
